Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation

Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation Featured Image
  • Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation
  • Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation
  • Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation
  • Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation
  • Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation

Short Description:

1.Used for low voltage 2.Protection against moisture and pressure 3.Suitable for cable termination and intermediate connecting insulation protection


Download as PDF

Product Detail

Product Tags

To become the stage of realizing dreams of our employees! To build a happier, more united and extra professional workforce! To reach a mutual advantage of our prospects, suppliers, the society and ourselves for Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation, We’re seeking forwards to establishing long-term business enterprise associations with globally shoppers.
To become the stage of realizing dreams of our employees! To build a happier, more united and extra professional workforce! To reach a mutual advantage of our prospects, suppliers, the society and ourselves for China Cold Shrink Sleeve and Fast Delivery and Competitive Price, During the short years, we serve our clients honestly as Quality First, Integrity Prime, Delivery Timely, which has earned us an outstanding reputation and an impressive client care portfolio. Looking forward to working with you Now!
Low Voltage Heat Shrink Tubing

Application

1.Used for low voltage

2.Protection against moisture and pressure

3.Suitable for cable termination and intermediate connecting insulation protection

Feature

1.Excellent corrosion resistance

2.UV resistance and weathering resistance

3.Halogen-free

4.Superior electrical and mechanical properties.

/heat-shrinkable-and-silicon-rubber-accessories/









Performance

Test Test Method Requirement
Operating temperature UL 224 -50 to+125 ℃
Tensile strength ASTM D 2671 ≥14 Mpa
Elongation at break ASTM D 2671 ＞400%
elongation at break after heat aging ASTM D 2671 158℃/168hrs ≥300%
Longitudinal shrinkage UL 224 0±5%
Partial wall rate ASTM D 2671 ＜30%
Flame retardancy VW-1 Pass
Volume resistivity IEC 93 ＞1014Ω.m
Copper stability UL224 Pass

heat shrink.31

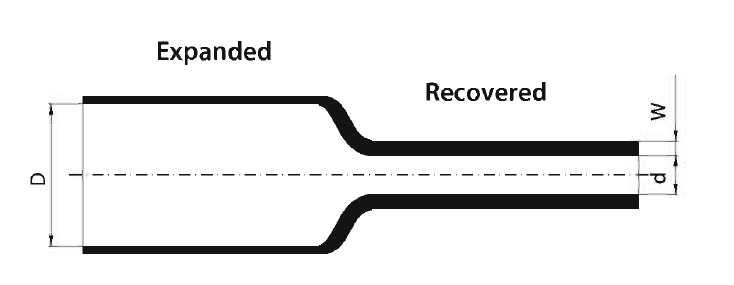

Type Expended ID(mm) ±0.1 Recovered ID(mm) Recovered Wall Thickness(mm) ±0.05 Length(mm)
ZRG-1.0/0.5 0.4 > 1.4 0.4 400
ZRG-1.5/0.75 0.6 > 1.9 0.4 300
ZRG-2.0/10 0.9 > 2.4 0.45 200
ZRG-2.5/125 1.1 > 2.9 0.45 200
ZRG-3.0/15 1.4 > 3.4 0.45 200
ZRG-3.5/1.75 1.6 > 3.9 0.45 200
ZRG-4.0/2.0 1.8 > 4.4 0.45 100
ZRG-5.0/2.5 2.3 > 5.3 0.50 100
ZRG-6.0/3.0 2.8 > 6.3 0.50 100
ZRG-7.0/3.5 3.3 > 7.4 0.55 100
ZRG-8.0/40 3.8 > 8.4 0.55 50
ZRG-9.0/45 4.3 > 9.4 0.55 50
ZRG-10.0/5.0 4.8 > 10.4 0.55 50
ZRG-11.0/5.5 5.3 > 11.4 0.60 50
ZRG-12.0/6.0 5.7 > 12.4 0.60 50
ZRG-13.0/6.5 6.2 > 13.4 0.60 50
ZRG-14.0/7.0 6.7 > 14.4 0.60 50
ZRG-15.0/7.5 7.2 > 15.5 0.65 50
ZRG-16.0/8.0 7.7 > 1.65 0.65 25
ZRG-17.0/8.5 8.2 > 17.5 0.7 25
ZRG-18.0 /9.0 8.7 > 19.0 0.80 25
ZRG-20.0/10.0 9.7 > 21.0 0.90 25
ZRG-22.0/11.0 10.0 > 22.0 0.90 25
ZRG-250/12.5 11.0 > 25.0 0.90 25
ZRG-28 0/14.0 13.0 > 28 0 0.90 25
ZRG-30.0/15.0 14.0 > 30.0 1.00 25
ZRG-35.0/17.5 16.0 > 35.0 1.00 25
ZRG-40.0/20.0 19.0 > 42.0 1.00 25
ZRG-50.0/25.0 24.0 > 50 0 1.00 25
ZRG-60.0/30.0 30.0 > 60.0 1.00 25
ZRG-70.0/35.0 35.0 > 70.0 1.10 25
ZRG-80.0/40.0 40.0 > 80.0 1.10 25
ZRG-90.0/45.0 45.0 > 90.0 1.20 25
ZRG-100.0/50.0 50.0 > 100.0 1.20 25
ZRG-120.0/6 0.0 60.0 > 120.0 1.20 25
ZRG-150.0/75.0 75.0 > 150.0 1.20 25
ZRG-200.0/100.0 100.0 > 200.0 1.20 25

全球搜详情_03
Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.

 To become the stage of realizing dreams of our employees! To build a happier, more united and extra professional workforce! To reach a mutual advantage of our prospects, suppliers, the society and ourselves for Wholesale OEM Silicone Rubber EPDM Cold Shrink Sleeve Tube for Telecom Connector Insulation, We’re seeking forwards to establishing long-term business enterprise associations with globally shoppers.
Wholesale OEM China Cold Shrink Sleeve and Fast Delivery and Competitive Price, During the short years, we serve our clients honestly as Quality First, Integrity Prime, Delivery Timely, which has earned us an outstanding reputation and an impressive client care portfolio. Looking forward to working with you Now!
