UPB Universal bracket

Short Description:

The UPB universal bracket is a pole hardware made of aluminum alloy offering high mechanical properties. Its unique design has been engineered so to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product information:

    The UPB universal bracket is a pole hardware made of aluminum alloy offering high mechanical properties. Its unique design has been engineered so

    to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden

    Our installation guidance:

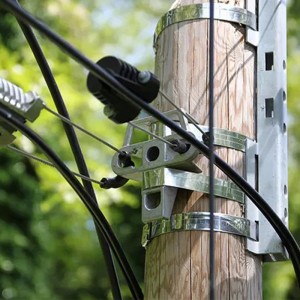

    With pole band: the UPB universal bracket fixes on all type of poles, drilled or undrilled, by using two pole bands of 20mm width

    SB204or SB207 and two buckles B20 or two clevis fasteners A20. On average, two meters of pole band are required per bracket.

    The choice of the pole band’s thickness depends on the required resistance and on the loads to which the bracket is submitted.

    With bolt: if the pole head is drilled (wooden, sometimes concrete) the universal pole bracket UPB can also be mounted with a

    cross-through bolt Ø 14 or 16mm. The bolt’s length is then proportional to the pole head’s diameter + 42mm (the bracket’s thickness).

    安装3~1 5 3

    ECHNICAL CHARACTERISTICS

    Material: Aluminum alloy

    Mechanical strength: from 200 to 930daN (depending on anchor points and uses)

    FEATURES & BENEFITS

    Multi-use product; enables the cross-arm fastening,simple or double anchoring, stay wire

    Compact and lightweight model: compatible with wooden, metal or concrete poles

    全球搜详情_03
    Q:CAN YOU HELP US IMPROT AND EXPORT?

    A:We will have a professional team to serve you.

    Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

    A:We have certificates of ISO,CE, BV,SGS.

    Q:WHAT’S YOUR WARRANTY PERIOD?

    A:1 year in general.

    Q:CAN YOU DO OEM SERVICE?

    A:YES,we can.

    Q:WHAT YOU LEAD TIME?

    A:Our standard models are in stock ,as for big orders ,it take about 15 days.

    Q:CAN YOU PROVIDE FREE SAMPLES?

    A:Yes,please contact us to know the sample policy.
