YOJIU Electric Power Cable ABC Accessories Dead End Tension Clamp
2-Cores Service Anchor Clamp PA25 Series
The 2-cores anchor clamp is used to fix the end of inside line, also suitable for insulated LV-ABC cable and multiple conductors.
•The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation.
• No additional tools required.
• Standard: NFC33-042
| Item No. | Cross section(mm²) |
Messsenger DIA.（mm） |
Breaking load |
| YJPA25 | 2×（16-25） |
4-8 |
2 KN |
| YJPA25B | 2×（16-25） |
4-8 |
2 KN |
| YJPA25BS | 2×（16-25） |
6-10 |
2.5KN |

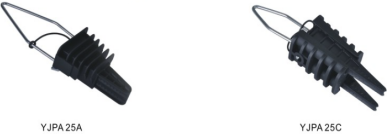

4-Cores Service Anchor Clamp PA25 Series
•The 4-cores anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation
• No additional tools required.
• Standard: NFC33-042
| Item No. |
Cross section(mm²) |
Messsenger DIA.（mm） | Breaking load |
| YJPA25A |
4×（16-25） |
4-8 |
2 KN |
| YJPA25C |
4×（16-25） |
4-8 |
2 KN |
| YJPA25CS |
4×（4-35） |
4-10 |
2 KN |
Anchor Clamp PAR Series
The PAR series anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation.
• No additional tools required.
• Standard: NFC33-042
| Item No. | Cross section(mm²) | Messsenger DIA.（mm） | Breaking load |
| YJPAR20 |
2×（16-25） |
10-16 |
2.5 KN |
| YJPAR21 |
2×4 -4×25 |
4-19 |
2.5 KN |
Anchor Clamp YJPC63
The YJPC63 anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation
• No additional tools required.
• Standard: NFC33-042
| Item No. | Cross section(mm²) | Messsenger DIA.（mm） | Breaking load |
| YJPC63 |
2×16-4×25 |
6-16 |
3 KN |
Dead End Clamp YJPAP Series
| Item No. |
Cross section(mm²) |
Messsenger DIA.（mm） | Breaking load |
| YJPAP500 |
16-25 |
3-9 |
6 KN |
| YJPAP1500 |
50-70 |
11-14 |
10 KN |
| YJPAP2000 |
70-95 |
14-16 |
15 KN |

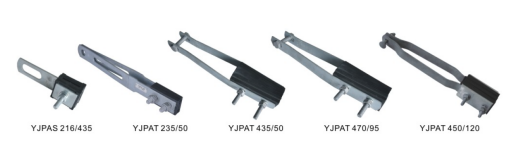

Clamp YJPAS And YJPAT Series
YJPAS and YJPAT Series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.
•The wedge type clamp is self-adjusting.
• The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel.
| Item No. |
Cross section(mm²) |
Messsenger DIA.（mm） | Breaking load |
| YJPAS 216/435 |
2×16-4×35 |
4-11 |
4KN |
| YJPAT 235/50 |
2×(35-50） |
8-11 |
15KN |
| YJPAT 435/50 |
4×(35-50） |
11-14 |
15KN |
| YJPAT 470/95 | 4×(70-95) |
14-16 |
40KN |
| YJPAT 450/120 | 4×(50-120) |
11-17 |
40KN |
Dead End Clamp YJRPA Series
YJRPA series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.
•The wedge type clamp is self-adjusting.
• Clamp made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel
| Item No. |
Cross section(mm²) |
Messsenger DIA.（mm） | Breaking load |
| YJRPA425/50 |
4×（25-50） |
7-12 |
20 KN |
| YJRPA450/120 |
4×（50-120） |
11-17 |
30 KN |
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
