PT suspension clamp
Product information:

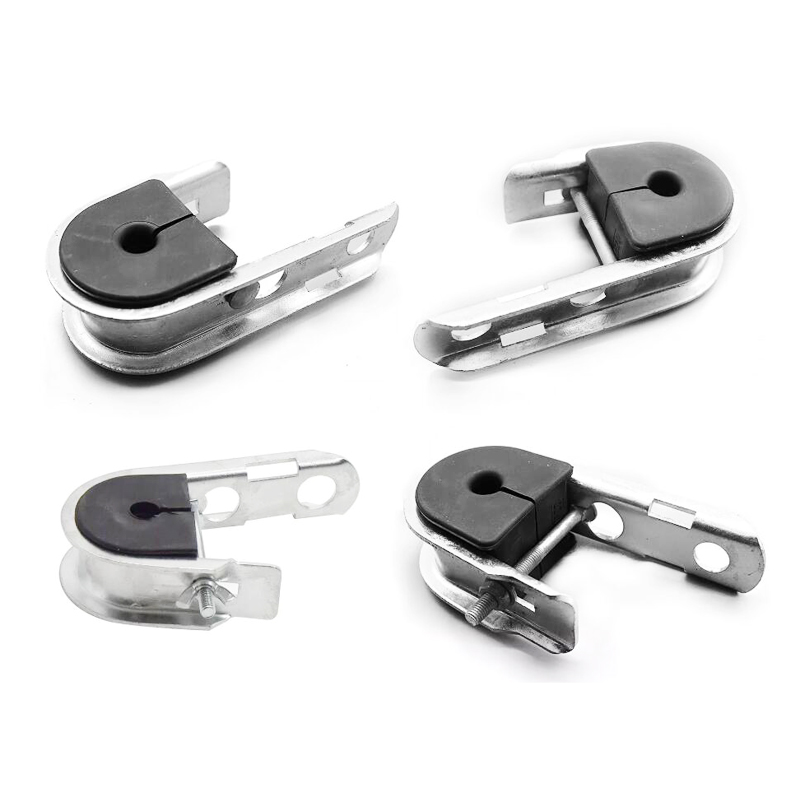

Suspension clamp for adss cable J hook other calls adss cable supporting clamp designed to hold and suspend all dielectric
self-supporting cable in outdoor ftth line constructions.
Key Features:
1.Easy operation, free tools
2.High mechanical strength,up to 4KN
3.Stainless steel J-shape hook and UV proof insert
4.Can be installed on poles with stainless steel strap or pole bolt
5.Excellent environmental stability
6.Competitive price
Technical specification:
|
Item No. |
Cable size, mm |
MBL,KN |
Weight, KG |
Material |
|
PT 5-8 |
5-8 |
4 |
0.19 |
Galvanized steel, UV resistant plastic |
|
PT 8-12 |
8-12 |
4 |
0.19 |
|
|
PT 10-15 |
10-15 |
4 |
0.19 |
|
|
PT 15-20 |
15-20 |
4 |
0.19 |
This HC suspension clamp is consists of plastic insert, it’s made of UV resistant thermoplastic by plastic injection technology.The metal hook
of this clamp is made of galvanized steel which is corrosion resistant and with high mechanical strength.It can be installed on wooden,concrete
pole by stainless steel straps, pole bolt or hooks.
All four assemblies passed a series of standard related type tests which are available in our internal laboratory, such as+70°C~-40°C Temperature
and humidity cycling test, Tensile strength test, Aging test,Corrosion resistance test etc.
welcome to contact us for this adss suspension clamp price.
