ODM Manufacturer 8kn Overhead Dead End ADSS/ABC Cable Clamp ADSS Suspension Clamp Hanger
We’re going to commit ourselves to giving our esteemed buyers using the most enthusiastically considerate solutions for ODM Manufacturer 8kn Overhead Dead End ADSS/ABC Cable Clamp ADSS Suspension Clamp Hanger, We are wanting forward to even larger cooperation with abroad customers dependant on mutual rewards. Make sure you sense free to make contact with us for more depth!
We’re going to commit ourselves to giving our esteemed buyers using the most enthusiastically considerate solutions for China Dead End Clamp ADSS Cable and Drop Wire Clamp, Due to our dedication, our products are well known throughout the world and our export volume continuously grows every year. We will continue to strive for excellence by providing high quality products that will exceed the expectation of our customers.

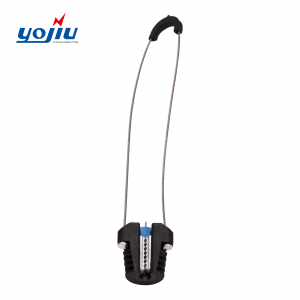

The AC-O-05，AC-O-08 and AC-O-10 Dead End Clamp
Cable Tension Clamp AC-O-05，AC-O-08 and AC-O-10 other called figure eight tension clamp or ADSS cable clamp, is designed to tension and anchor figure 8 cable messenger or round ADSS cable on outdoor aerial telecommunication lines.
|
Item No. |
Cross Section(mm2) |
Conductor(mm) |
Material |
Breaking Load(KN) |
|
AC-O-05 |
16-25 |
3-7 |
UV resistant thermoplastic and stainless steel |
3 |
|
AC-O-08 |
16-25 |
6-8 |
4 |
|
|
AC-O-10 |
16-25 |
8-10 |
5 |
Key Features:
Self-adjustable wedge
Easy installation, request no additional tools
UV resistant thermoplastic and stainless steel bail, durable
No cable insulation damages and slipping
Allows installed with pole brackets or hooks
Excellent Environmental Stability
Competitive price
And the installation instruction are as followed:
1.Attach the clamp to the pole bracket using its flexible bail.
2.Place the clamp body over the cable with the wedges in their back position.
3.Push on the wedges by hand to initiate the gripping onto the cable.
4.Check the correct positioning of the cable between the wedges.
5.When the cable is brought to its installation load at the end pole,the wedges move further onto the clamp body.When installing a double
dead-end leave some extra length of cable between the two clamps.
At the same time, we can also provide customized product services according to customer requirements. Although our product prices are
not necessarily the lowest, they must be the most valuable.Any questions just contact us freely.
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
We’re going to commit ourselves to giving our esteemed buyers using the most enthusiastically considerate solutions for ODM Manufacturer 8kn Overhead Dead End ADSS/ABC Cable Clamp ADSS Suspension Clamp Hanger, We are wanting forward to even larger cooperation with abroad customers dependant on mutual rewards. Make sure you sense free to make contact with us for more depth!
ODM Manufacturer China Dead End Clamp ADSS Cable and Drop Wire Clamp, Due to our dedication, our products are well known throughout the world and our export volume continuously grows every year. We will continue to strive for excellence by providing high quality products that will exceed the expectation of our customers.
