In some relatively large-scale communication projects, reasonable optical fiber wiring connectors are essential. Although the shape

difference is not large, the functional difference is very obvious. In this issue, we will focus on several commonly used fiber optic

connectors, start with mutual comparison, and deeply analyze their application scenarios.

ADL Suspension clamp

https://www.yojiuelec.com/fiber-optic-cable-accessories/https://www.yojiuelec.com/adss-cable-fittings-suspension-set-product/

Application:

The suspension clamps are mainly used for suspending optic cable(or conductor) in overhead line, similar with ordinary suspension

clamp. When used for conductor and ground wire’s installation in ADSS cable and HV transmission line, we suggest the line corner

angle is ≤ 30° .ADSS preformed suspension clamp is mainly used to support the suspend ADSS cable. It is suitable for the ADSS cable,

conductor and grounding wire on transmission line. It is recommended used on the line with turning angle less than 30 degree.

Advantages:

ADSS preformed suspension set is applicable for connection of ADSS optical cable suspended on overhead transmission line to pole or

tower on which the clamp can both lessen static stress imposed on optical cable on the suspended point and enhance anti-vibration

capacity for optical cable through restraining wind vibration to optical cable, protecting optical cable from influence of bending stress

as well as from additional consumption.This helical suspension clamp is the connecting fitting that hangs ADSS cable onto the poles

or tower in the transfer line, the clamp can decrease the static stress of cable at hanging point, improve anti vibration capacity and

restrain dynamical stress caused from wind vibration. It also can ensure that the cable bend doesn’t exceed allowable value and cable

doesn’t generate bend stress. By installing this clamp, the various harmful stress concentrations can be avoided, so the additional

damage wastage shall not occur in the optical fiber within the cable.

Item No.

LJG/T1179-1983

Length of cable clamp(mm)

Weight of cable clamp(KG)

Nominal cross-section(mm2)

Outer diameter(mm)

Single vibration damper

Double vibration damper

Single vibration damper

Double vibration damper

ADL-95

95

12.48

1020

1350

1.1

2

ADL-120

120

14.25

1120

1470

1.4

2.4

ADL-150

150

15.75

1270

1680

1.5

2.4

ADL-185

185

17.50

1380

1830

1.8

3

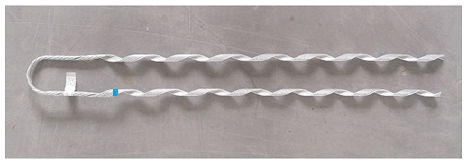

Tension Guy grip for ADSS cable

Hot dip galvanized spiral dead-ends without armored rods for a direct installation on the cable for works on short spans (70 m max.);

Hot dip galvanized amored rods for a direct protection on the cable and a spiral dead-end for anchoring cables on medium spans

(150 m max.) and long spans (350 m max.).

In addition to these amored rods and this dead-end, various accessories should be ordered separately to complete to complete the pole

configuration (thimble, turnbuckle, bracket, etc.).

Application scenarios:
Terminal、 tensile 、tension joint pole/tower.
Terminal pole/tower: it is the last pole/tower in the fiber route;
Tensile pole/tower: when the pole/tower route direction change, different pull force will appear on the corner pole/tower. cables no spliced .
Tension joint pole/tower: the pole/tower is where cables will be spliced.
Range of diameter of ADSS cable:11.3±0.5mm.
Tension string failing load≥95% RTS (RTS=7 kN).

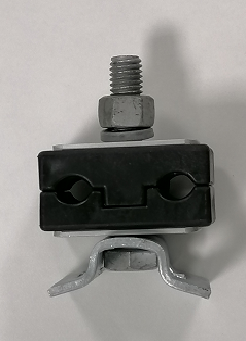

Down lead clamp for ADSS

Application scenarios:

They are generally installed on the tension joint pole/ Tensile pole middle fixed.

Every 1.5 m -2 m install 1 pc.



Description Qty Clamp use for ADSS cable diameter range
Down lead clamp 1 pc 9-14.4mm

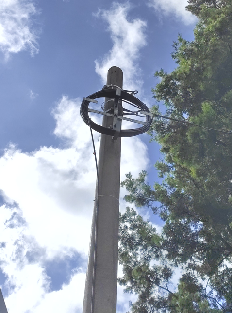

Slack Storage Bracket on pole for cable

Cable Storage Assembly is used for storage of reserved optical fibre cable. It is divided into Inserted type storage and Outside

coil type storage, they are generally installed on the strain tower and pole.

Application

•The function of the remaining cable rack is to store the reserved optical cable, which is generally used on the tensile tower (pole).

• It is generally divided into an internal buckle type residual cable rack and an external disc type residual cable rack.

1

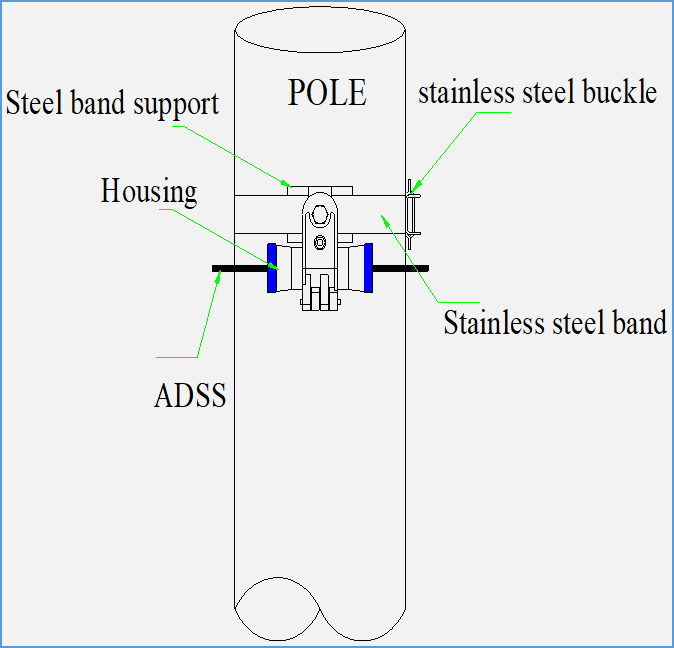

Stainless steel band and Stainless steel buckle Set

Stainless steel strap is designed to attach suspension bracket and dead end bracelet to the poles.

The material of straps and buckles can be 201 or 304 stainless steel.

The stainless strapping band is used in many industries to bind items together or to affix loose items to more stable ones.

The steel coil banding is applied with suspension clamps, anchor clamps, and hooks on dead end and international routes.



Item No.

Width(mm)

Thickness(mm)

Length(m)

YJCF 10A

10

0.4

25/50

YJCF 10B

10

0.7

25/50

YJCF 20A

20

0.4

25/50

YJCF 20B

20

0.7

25/50
