Malleable Iron WS Type Electric Power Fitting Line Eye Clevis Socket Clevis Pole
WS Type Socket Clevis
WS type socket eye is used to attach ball and socket insulators to other associated hardware.
It is made of malleable iron or casting steel and hot-dip galvanized.
Cotter pins are stainless steel,
Security clip is bronze or stainless steel
The other parts are hot-dip galvanized steel.
|
Item No. |
Suitable Insulator |

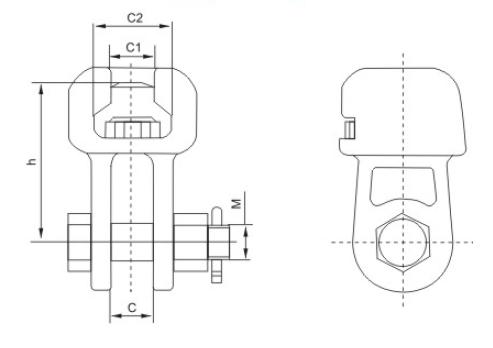

Dimension(mm) |
Socket IEC Code |
Rated Failure load(kN) |
Weight (Kg) |
||||
|
C |
C1 |
C2 |
M |
h |
|||||
|
WS-7 |
XP-7 |
18 |
19.2 |
34.5 |
16 |
70 |
16mm |
70 |
1 |
|
WS-10 |
XP-10 |
20 |
19.2 |
34.5 |
18 |
85 |
16mm |
100 |
1.2 |
|
WS-12 |
XP-12 |
24 |
19.2 |
34.5 |
22 |
85 |
16mm |
120 |
2.1 |
|
WS-16 |
XP-16 |
26 |
23 |
42.5 |
24 |
95 |
20mm |
160 |
2.6 |
|
WS-20 |
XP-20 |
30 |
27.5 |
51 |
27 |
100 |
24mm |
200 |
4.5 |
|
WS-21 |
XP-21 |
30 |
23 |
42.5 |
27 |
100 |
20mm |
210 |
4.3 |
|
WS-30 |
XP-30 |
36 |
27.5 |
51 |
36 |
110 |
24mm |
300 |
5.7 |
