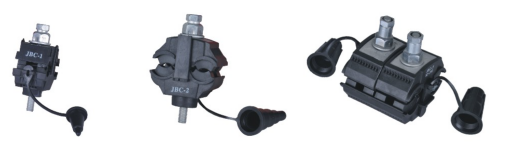

Insulation Piercing Connector JBC Series
The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.
The insulation material is made of weather and UV resistant .
Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.
Insulating end cap and easy to install.
| Item No. | Main conductor size(mm2) | Branch conductor size(mm2) | Bolts QTY. |
| JBC-1 | 35-70 | 6-35 | 1 |
| JBC-2 | 35-150 | 35-150 | 1 |
| JBC-3 | 50-240 | 50-240 | 2 |

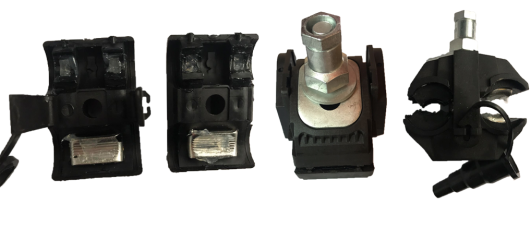

The Accessories Of IPC
These accessories are combined with IPC, it is used for all types of LV-ABC conductors
Its self-seam frame is wet proof, water proof, and anti-corrosive, which can prolong the using life of insulated lead and connector.
| Item No. | Main conductor size(mm2) | Branch conductor size(mm2) | Note |
| YJF35 | 35 | 2.5-35 | USE WITH IPC |
| YJF70 | 70 | 25-70 | USE WITH IPC |
| YJF95 | 95 | 25-95 | USE WITH IPC |
| YJFT235 | 70 | 2×(6-35) | USE WITH IPC |
| YJFCC25 | 25 | USE WITH IPC |

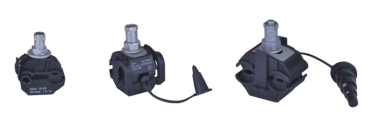

Insulation Piercing Connector YJ Series
The YJ series insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.
The insulation material is made of weather and UV resistant glass fiber reinforced polymer.
Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.
Insulating end cap and easy to install.
The product exceeds 6Kv(1mm) dielectric withstand voltage when immersed in water.
| Item No. | Main conductor size(mm2) | Branch conductor size(mm2) | Bolts QTY. |
| YJEPS | 2.5-35 | 1.5-6 | 1×M6 |
| YJEP | 16-95 | 1.5-10 | 1×M6 |
| YJ2-95 | 16-95 | 4-35(50) | 1×M8 |
| YJ2-150 | 50-150 | 6-35(50) | 1×M8 |
| YJ3-95 | 25-95 | 25-95 | 1×M8 |
| YJ4-150 | 50-150 | 50-150 | 1×M8 |
insulation piercing connectors CTN Series
The CTN series insulation piercing connectors allow the transition between bare lines (aluminum or copper) and insulated LV ABC lines.
|
Item No. |
Main conductor size (mm2) |
Branch conductor size (mm2) |
Bolts QTY. |
|
CTN70A |
16-95 |
4-35 |
1×M8 |
|
CTN95A |
16-95 |
16-95 |
1×M8 |
