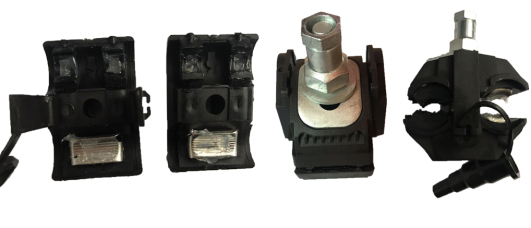

High reputation Waterproof Low Voltage Insulation Piercing Connector

High reputation Waterproof Low Voltage Insulation Piercing Connector Featured Image
  • High reputation Waterproof Low Voltage Insulation Piercing Connector
  • High reputation Waterproof Low Voltage Insulation Piercing Connector
  • High reputation Waterproof Low Voltage Insulation Piercing Connector

Short Description:

The insulation material is made of weather and UV resistant . Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area. Insulating end cap and easy to install.


Download as PDF

Product Detail

Product Tags

Our workforce through experienced training. Skilled expert knowledge, potent sense of assistance, to satisfy the service demands of customers for High reputation Waterproof Low Voltage Insulation Piercing Connector, We are able to present you with essentially the most aggressive prices and premium quality, because we’re much extra Skilled! So remember to never hesitate to speak to us.
Our workforce through experienced training. Skilled expert knowledge, potent sense of assistance, to satisfy the service demands of customers for China Piercing Connector and Piercing Clamp, We welcome you to visit our company & factory and our showroom displays various products that will meet your expectations. Meanwhile, it is convenient to visit our website. Our sales staff will try their best to offer you with the best services. If you need more information, make sure you do not hesitate to contact us via E-mail, fax or telephone.
阿里巴巴详情介绍图

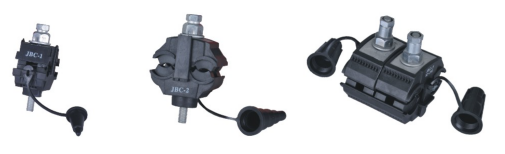

Insulation Piercing Connector JBC Series

The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant .

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Bolts QTY.
JBC-1 35-70 6-35 1
JBC-2 35-150 35-150 1
JBC-3 50-240 50-240 2

The Accessories Of IPC

These accessories are combined with IPC, it is used for all types of LV-ABC conductors

Its self-seam frame is wet proof, water proof, and anti-corrosive, which can prolong the using life of insulated lead and connector.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Note
YJF35 35 2.5-35 USE WITH IPC
YJF70 70 25-70 USE WITH IPC
YJF95 95 25-95 USE WITH IPC
YJFT235 70 2×(6-35) USE WITH IPC
YJFCC25 25 USE WITH IPC

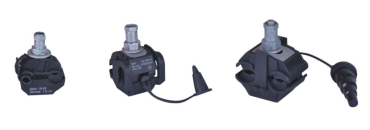

Insulation Piercing Connector YJ Series

The YJ series insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant glass fiber reinforced polymer.

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

The product exceeds 6Kv(1mm) dielectric withstand voltage when immersed in water.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Bolts QTY.
YJEPS 2.5-35 1.5-6 1×M6
YJEP 16-95 1.5-10 1×M6
YJ2-95 16-95 4-35(50) 1×M8
YJ2-150 50-150 6-35(50) 1×M8
YJ3-95 25-95 25-95 1×M8
YJ4-150 50-150 50-150 1×M8

insulation piercing connectors CTN Series

The CTN series insulation piercing connectors allow the transition between bare lines (aluminum or copper) and insulated LV ABC lines.

Item No.

Main conductor size

(mm2)

Branch conductor size

(mm2)

Bolts QTY.

CTN70A

16-95

4-35

1×M8

CTN95A

16-95

16-95

1×M8

全球搜详情_03
Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.

 Our workforce through experienced training. Skilled expert knowledge, potent sense of assistance, to satisfy the service demands of customers for High reputation Waterproof Low Voltage Insulation Piercing Connector, We are able to present you with essentially the most aggressive prices and premium quality, because we’re much extra Skilled! So remember to never hesitate to speak to us.
High reputation China Piercing Connector and Piercing Clamp, We welcome you to visit our company & factory and our showroom displays various products that will meet your expectations. Meanwhile, it is convenient to visit our website. Our sales staff will try their best to offer you with the best services. If you need more information, make sure you do not hesitate to contact us via E-mail, fax or telephone.
