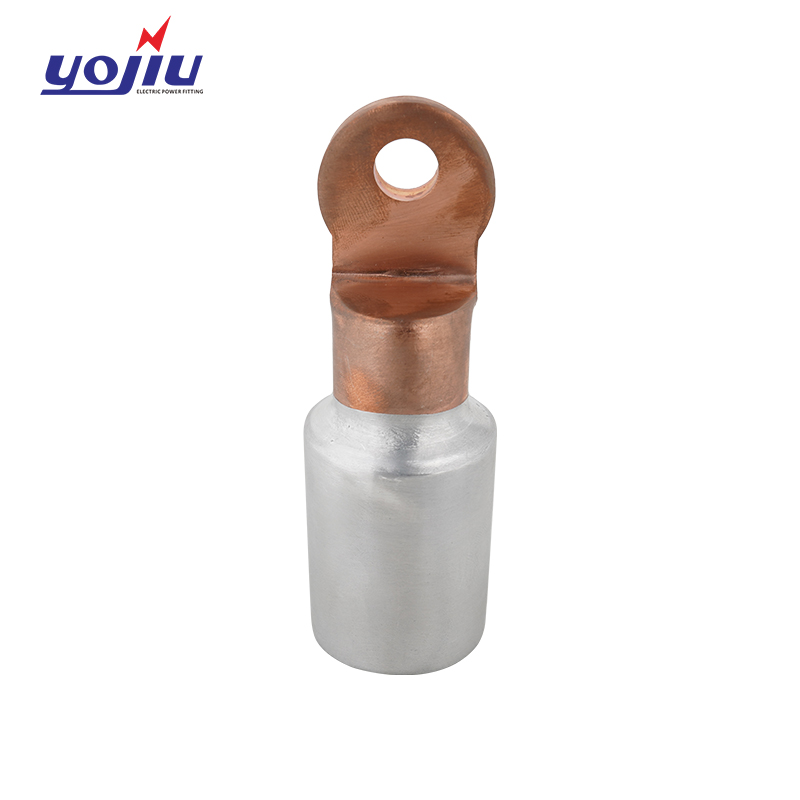

High quality ACX type Cu-Al cable wire bimetal terminal lug electric bimetallic lugs
ACX series copper and aluminium bimetallic lug electric bimetal cable lug
ACX copper and aluminium bimetallic lugs ACX copper and aluminium bimetallic lugs
1.Range from 35 to 300 mm2
2.Friction welding technology
3.Aluminium barrel and solid copper palm
4.Compact type
| Item No. | Capacity mm² | Dimension(mm) | Stud Hole Dia (mm) | |||
| ΦW | D | C | -L | |||
| ACX type | ||||||
| ACX 35 | 35 | 16 | 8 | 8 | 57 | 8.2 |
| ACX 50 | 50 | 16 | 9 | 8 | 57 | 8.2 |
| ACX 70 | 70 | 20 | 11 | 10 | 60 | 10.3 |
| ACX 95 | 95 | 20 | 12.5 | 10 | 60 | 10.3 |
| ACX 120 | 120 | 20 | 13.7 | 10 | 60 | 10.3 |
| ACX 150 | 150 | 30 | 15.5 | 15 | 78 | 12.8 |
| ACX 185 | 185 | 30 | 17 | 15 | 78 | 12.8 |
| ACX 240 | 240 | 30 | 19.5 | 15 | 78 | 12.8 |
| ACX 300 | 300 | 35 | 22 | 17.5 | 85 | 14.5 |
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
