Suspension Clamp
Suspension assembly clamp is designed to suspend LV-ABC lines with the insulated neutral messenger to the tower poles or walls.
Item No. | Cross section(mm²) | Breaking load |
YJPT25 | 2×16-4×25 |
8 KN |
YJPT50 | 4×25-4×50 |
8 KN |
YJPT95 | 4×70-4×95 |
10 KN |

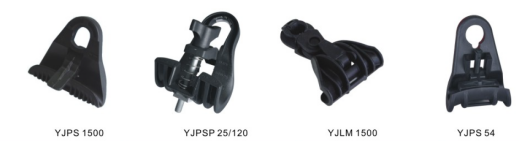

Item No. | Cross section(mm²) | Breaking load |
YJPS 1500 | 25-95 |
12 KN |
YJPSP 25/120 | 2×(25-35)-4×(16-120) |
12 KN |
YJLM 1500 | 25-95 |
8 KN |
YJPS 54 | 25-95 |
10 KN |

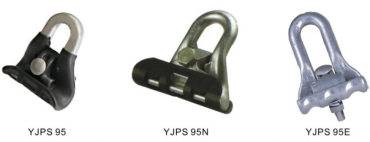

Item No. | Cross section(mm²) | Breaking load |
YJPS95 | 25-95 |
10 KN |
YJPS95N | 16-95 |
10 KN |
YJPS95E | 25-150 |
30 KN |

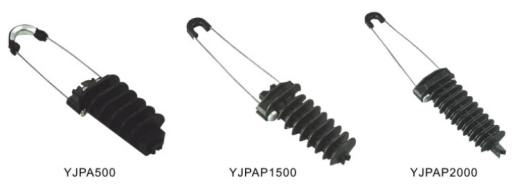

Dead End Clamp YJPAP Series
The YJPAP series dead end clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation
• No additional tools required
• Standard: NFC33-042
Item No. |
Cross section(mm²) |
Messsenger DIA.(mm) | Breaking load |
YJPAP500 |
16-25 |
3-9 |
6 KN |
YJPAP1500 |
50-70 |
11-14 |
10 KN |
YJPAP2000 |
70-95 |
14-16 |
15 KN |
Hot Galvanizing Steel Hook YJCD16
YJCD16 hot galvanizing steel hook is used for aerial cables.
Item No. |
Dimension(mm) |
Breaking Load |
||||
D |
A |
H |
C |
Fx,kN |
Fy,kN |
|
YJCD16 |
16 |
18 |
200 |
96 |
17.4 |
13.3 |

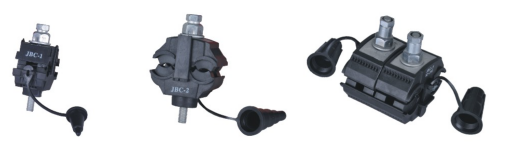

Insulation Piercing Connector JBC Series
The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.
The insulation material is made of weather and UV resistant .
Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.
Insulating end cap and easy to install.
Item No. | Main conductor size(mm2) | Branch conductor size(mm2) | Bolts QTY. |
JBC-1 | 35-70 | 6-35 | 1 |
JBC-2 | 35-150 | 35-150 | 1 |
JBC-3 | 50-240 | 50-240 | 2 |

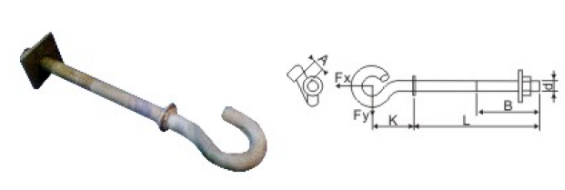

Hot Galvanizing Steel Hook YJBS Series
YJBS series hot galvanizing steel hook is used on wooden, concrete and other power poles for receiving ABC across dead end clamps and suspension clamps
Its installation is easy, by pushing it through a hole and tightening with a nut.
Item No. |
Dimension(mm) |
Breaking Load |
|||||
D |
L |
B |
A |
K |
Fx,kN |
Fy,kN |
|
YJBS 16/200 |
M16 |
200 |
120 |
20 |
80 |
11.9 |
2.4 |
YJBS 16/240 |
M16 |
240 |
120 |
20 |
80 |
11.9 |
2.4 |
YJBS 16/320 |
M16 |
320 |
120 |
20 |
80 |
11.9 |
2.4 |
YJBS 20/200 |
M20 |
200 |
120 |
20 |
80 |
14.5 |
4.6 |
YJBS 20/240 |
M20 |
240 |
120 |
20 |
80 |
14.5 |
4.6 |
YJBS 20/320 |
M20 |
320 |
120 |
20 |
80 |
14.5 |
4.6 |
YJBS 20/350 |
M20 |
350 |
120 |
20 |
80 |
14.5 |
4.6 |
CPTA/CPTAU Pre-insulated Bimetal Lug CPTA And CPTAU Serie
- These pre-insulated plugs are used to connect a LV insulated overhead lines to the transformer.
• The lug is composed of an aluminum barrel friction welded to an aluminium or copper palm. The insulation of the barrel is made with a black thermoplastic sealed with a flexible elastomer ring.
• A seal is also installed in, between the copper and the aluminium, in order to avoid galvanic corrosion.
• The crimping is made directly on the plastic part.
• CPTA/AU range are in accordance with the test described in the French standard NFC 33 021 and in the E.S.I 43-14.
Item No. |
Cross Section(mm2) |
Dimensions (mm) |
Color Code |
Crimping Die |
||
ΦA |
ΦB |
ΦD |
||||
CPTA 35 |
35 |
8.0 |
16.0 |
20 |
Red |
E173 |
CPTA 50 |
50 |
9.0 |
16.0 |
20 |
Yellow |
E173 |
CPTA 54 |
54 |
10.0 |
16.0 |
20 |
Black |
E173 |
CPTA 70 |
70 |
10.5 |
16.0 |
20 |
White |
E173 |
CPTA 95 D20 |
95 |
12.2 |
16.0 |
20 |
Grey |
E173 |
CPTA 150-21 D20UK |
150 |
15.5 |
21.0 |
20 |
Violet |
E215 |
CPTAU 16 D16 |
16 |
5.5 |
10.5 |
16 |
Blue |
E140 |
CPTAU 25 D16 |
25 |
6.5 |
10.5 |
16 |
Orange |
E173 |
CPTAU 35 |
35 |
8.0 |
12.8 |
20 |
Red |
E173 |
CPTAU 50 |
50 |
9.0 |
12.8 |
20 |
Yellow |
E173 |
CPTAU 54 |
54 |
10.0 |
12.8 |
20 |
Black |
E173 |
CPTAU 70 |
70 |
10.5 |
12.8 |
20 |
White |
E173 |
CPTAU 95 |
95 |
12.2 |
12.8 |
20 |
Grey |
E173 |
CPTAU 120 D25 |
120 |
14.2 |
12.8 |
25 |
Pink |
E215 |
CPTAU 150 D25 |
150 |
15.5 |
12.8 |
25 |
Viloet |
E215 |
