China wholesale China Cable Clamp Suspension Clamp for LV Insulated Overhead Line Cable

Short Description:

Low Voltage Electric Power ABC Accessories Anchor Suspension Clamp ,Bracket,Dead End Clamp,Hooks,Insulation Piercing Connector And Pre-insulated Lug And Sleeve.


Product Detail

Product Tags

Our company puts emphasis about the administration, the introduction of talented staff, along with the construction of employees building, seeking hard to boost the standard and liability consciousness of staff members members. Our business successfully attained IS9001 Certification and European CE Certification of China wholesale China Cable Clamp Suspension Clamp for LV Insulated Overhead Line Cable, Our corporation insists on innovation to promote the sustainable enhancement of enterprise, and make us become the domestic high-quality suppliers.
Our company puts emphasis about the administration, the introduction of talented staff, along with the construction of employees building, seeking hard to boost the standard and liability consciousness of staff members members. Our business successfully attained IS9001 Certification and European CE Certification of China Suspension Clamp, Clamp, Ensuring high product quality by choosing the best suppliers, we now have also implemented thorough quality control processes throughout our sourcing procedures. Meanwhile, our access to a large range of factories, coupled with our excellent management, also ensures that we can quickly fill your requirements at the best prices, regardless the order size.

阿里巴巴详情介绍图改

Suspension Clamp

Suspension assembly clamp is designed to suspend LV-ABC lines with the insulated neutral messenger to the tower poles or walls.

Item No. Cross section(mm²) Breaking load
YJPT25 2×16-4×25

8 KN

YJPT50  4×25-4×50

8 KN

YJPT95 4×70-4×95

10 KN

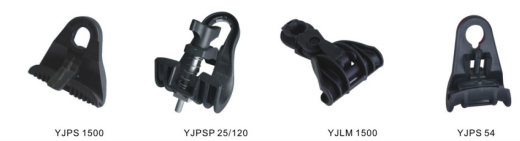

Item No. Cross section(mm²) Breaking load
YJPS 1500 25-95

12 KN

YJPSP 25/120  2×(25-35)-4×(16-120)

12 KN

YJLM 1500 25-95

 8 KN

YJPS 54 25-95

10 KN

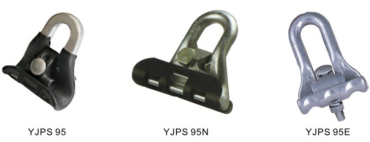

Item No. Cross section(mm²) Breaking load
YJPS95 25-95

10 KN

YJPS95N  16-95

10 KN

YJPS95E 25-150

30 KN

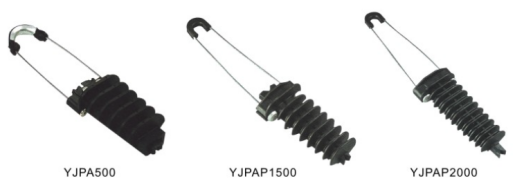

Dead End Clamp YJPAP Series

The YJPAP series dead end clamp is designed for service line with 2 or 4 conductors.

• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation

• No additional tools required

• Standard: NFC33-042



Item No.

Cross section(mm²)

Messsenger DIA.(mm) Breaking load
YJPAP500

16-25

3-9

6 KN

YJPAP1500

50-70

11-14

10 KN

YJPAP2000

70-95

14-16

15 KN

Hot Galvanizing Steel Hook YJCD16

YJCD16 hot galvanizing steel hook is used for aerial cables.

Item No.

Dimension(mm)

Breaking Load

D

A

H

C

Fx,kN

Fy,kN

YJCD16

16

18

200

96

17.4

13.3

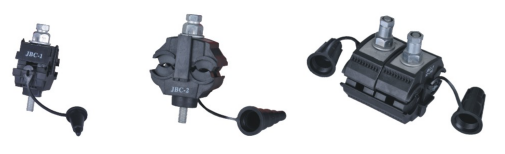

Insulation Piercing Connector JBC Series

The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant .

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Bolts QTY.
JBC-1 35-70 6-35 1
JBC-2 35-150 35-150 1
JBC-3 50-240 50-240 2

Hot Galvanizing Steel Hook YJBS Series



YJBS series hot galvanizing steel hook is used on wooden, concrete and other power poles for receiving ABC across dead end clamps and suspension clamps

Its installation is easy, by pushing it through a hole and tightening with a nut.

Item No.

Dimension(mm)

Breaking Load

D

L

B

A

K

Fx,kN

Fy,kN

YJBS 16/200

M16

200

120

20

80

11.9

2.4

YJBS 16/240

M16

240

120

20

80

11.9

2.4

YJBS 16/320

M16

320

120

20

80

11.9

2.4

YJBS 20/200

M20

200

120

20

80

14.5

4.6

YJBS 20/240

M20

240

120

20

80

14.5

4.6

YJBS 20/320

M20

320

120

20

80

14.5

4.6

YJBS 20/350

M20

350

120

20

80

14.5

4.6

CPTA/CPTAU Pre-insulated Bimetal Lug CPTA And CPTAU Serie

  • These pre-insulated plugs are used to connect a LV insulated overhead lines to the transformer.

• The lug is composed of an aluminum barrel friction welded to an aluminium or copper palm. The insulation of the barrel is made with a black thermoplastic sealed with a flexible elastomer ring.

• A seal is also installed in, between the copper and the aluminium, in order to avoid galvanic corrosion.

• The crimping is made directly on the plastic part.

• CPTA/AU range are in accordance with the test described in the French standard NFC 33 021 and in the E.S.I 43-14.





Item No.

Cross Section(mm2)

Dimensions (mm)

Color Code

Crimping Die

ΦA

ΦB

ΦD

CPTA 35

35

8.0

16.0

20

Red

E173

CPTA 50

50

9.0

16.0

20

Yellow

E173
CPTA 54

54

10.0

16.0

20

Black

E173
CPTA 70

70

10.5

16.0

20

White

E173
CPTA 95 D20

95

12.2

16.0

20

Grey

E173
CPTA 150-21 D20UK

150

15.5

21.0

20

Violet

E215

CPTAU 16 D16

16

5.5

10.5

16

Blue

E140

CPTAU 25 D16

25

6.5

10.5

16

Orange

E173
CPTAU 35

35

8.0

12.8

20

Red

E173
CPTAU 50

50

9.0

12.8

20

Yellow

E173
CPTAU 54

54

10.0

12.8

20

Black

E173
CPTAU 70

70

10.5

12.8

20

White

E173
CPTAU 95

95

12.2

12.8

20

Grey

E173
CPTAU 120 D25

120

14.2

12.8

25

Pink

E215

CPTAU 150 D25

150

15.5

12.8

25

Viloet

E215





全球搜详情_03
Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.

Our company puts emphasis about the administration, the introduction of talented staff, along with the construction of employees building, seeking hard to boost the standard and liability consciousness of staff members members. Our business successfully attained IS9001 Certification and European CE Certification of China wholesale China Cable Clamp Suspension Clamp for LV Insulated Overhead Line Cable, Our corporation insists on innovation to promote the sustainable enhancement of enterprise, and make us become the domestic high-quality suppliers.
China wholesale China Suspension Clamp, Clamp, Ensuring high product quality by choosing the best suppliers, we now have also implemented thorough quality control processes throughout our sourcing procedures. Meanwhile, our access to a large range of factories, coupled with our excellent management, also ensures that we can quickly fill your requirements at the best prices, regardless the order size.
