China Supplier China Insulation Piercing Connectors for ABC Cable Cable Clips for Insulated Overhear Line

Short Description:

The insulation material is made of weather and UV resistant . Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area. Insulating end cap and easy to install.


Product Detail

Product Tags

With reliable high-quality process, superior reputation and excellent customer assistance, the series of items produced by our company are exported to a lot of countries and regions for China Supplier China Insulation Piercing Connectors for ABC Cable Cable Clips for Insulated Overhear Line, We welcome new and outdated shoppers from all walks of lifetime to call us for long term company associations and mutual accomplishment!
With reliable high-quality process, superior reputation and excellent customer assistance, the series of items produced by our company are exported to a lot of countries and regions for China Insulated Piercing Connectors, Piercing Clamp Connector, Our company always concentrate on the development of the international market. We’ve a lot of customers in Russia , European countries, the USA, the Middle East countries and Africa countries. We always follow that quality is foundation while service is guarantee to meet all customers.
阿里巴巴详情介绍图

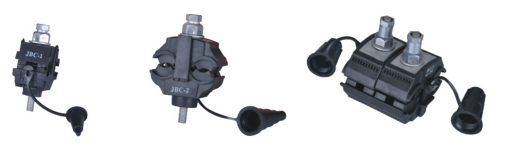

Insulation Piercing Connector JBC Series

The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant .

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Bolts QTY.
JBC-1 35-70 6-35 1
JBC-2 35-150 35-150 1
JBC-3 50-240 50-240 2

The Accessories Of IPC

These accessories are combined with IPC, it is used for all types of LV-ABC conductors

Its self-seam frame is wet proof, water proof, and anti-corrosive, which can prolong the using life of insulated lead and connector.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Note
YJF35 35 2.5-35 USE WITH IPC
YJF70 70 25-70 USE WITH IPC
YJF95 95 25-95 USE WITH IPC
YJFT235 70 2×(6-35) USE WITH IPC
YJFCC25 25 USE WITH IPC

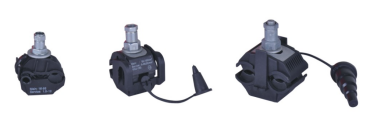

Insulation Piercing Connector YJ Series

The YJ series insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant glass fiber reinforced polymer.

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

The product exceeds 6Kv(1mm) dielectric withstand voltage when immersed in water.

Item No. Main conductor size(mm2) Branch conductor size(mm2) Bolts QTY.
YJEPS 2.5-35 1.5-6 1×M6
YJEP 16-95 1.5-10 1×M6
YJ2-95 16-95 4-35(50) 1×M8
YJ2-150 50-150 6-35(50) 1×M8
YJ3-95 25-95 25-95 1×M8
YJ4-150 50-150 50-150 1×M8

insulation piercing connectors CTN Series

The CTN series insulation piercing connectors allow the transition between bare lines (aluminum or copper) and insulated LV ABC lines.

Item No.

Main conductor size

(mm2)

Branch conductor size

(mm2)

Bolts QTY.

CTN70A

16-95

4-35

1×M8

CTN95A

16-95

16-95

1×M8

全球搜详情_03
Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.
