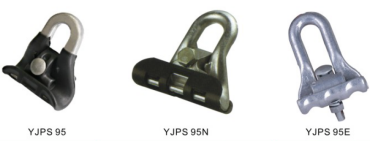

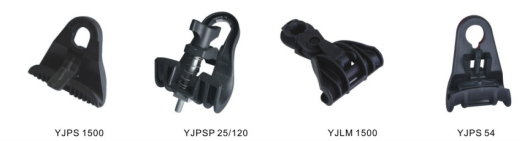

Suspension Clamp

Suspension assembly clamp is designed to suspend LV-ABC lines with the insulated neutral messenger to the tower poles or walls.

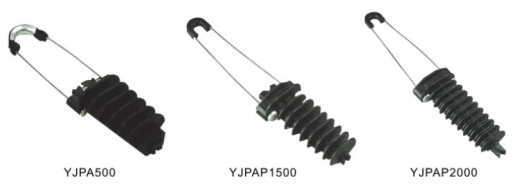

Dead End Clamp YJPAP Series

The YJPAP series dead end clamp is designed for service line with 2 or 4 conductors.

• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation

• No additional tools required

• Standard: NFC33-042

Hot Galvanizing Steel Hook YJCD16

YJCD16 hot galvanizing steel hook is used for aerial cables.

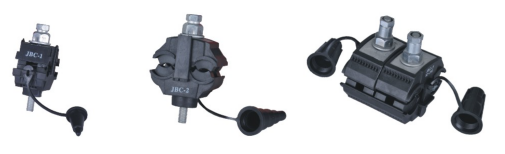

Insulation Piercing Connector JBC Series

The JBC insulation piercing connectors are used to achieve contact by simultaneously piercing the insulation for majority types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.

The insulation material is made of weather and UV resistant .

Contact with the blade selects tin copper or a strong aluminum alloy, which ensures the optimal transition of contact area.

Insulating end cap and easy to install.

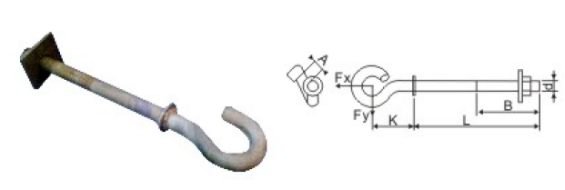

Hot Galvanizing Steel Hook YJBS Series

YJBS series hot galvanizing steel hook is used on wooden, concrete and other power poles for receiving ABC across dead end clamps and suspension clamps

Its installation is easy, by pushing it through a hole and tightening with a nut.

CPTA/CPTAU Pre-insulated Bimetal Lug CPTA And CPTAU Serie

• These pre-insulated plugs are used to connect a LV insulated overhead lines to the transformer.

• The lug is composed of an aluminum barrel friction welded to an aluminium or copper palm. The insulation of the barrel is made with a black thermoplastic sealed with a flexible elastomer ring.

• A seal is also installed in, between the copper and the aluminium, in order to avoid galvanic corrosion.

• The crimping is made directly on the plastic part.

• CPTA/AU range are in accordance with the test described in the French standard NFC 33 021 and in the E.S.I 43-14.
