2020 China New Design Waterproof Insulation Piercing Connector - Electric power wire connector copper and aluminium terminals cable crimping lugs type – Yongjiu Detail:

banner端子

SC series Incorporate inspection hole to check the correct cable positioning,surface Electric tin plated.The Bimetallic cable connector is made of 99.9% high-conductivity pure copper and 99.5% pure aluminum, it is combined with friction welding, which has excellent electrical conductivity. CPTA and CPTAU series pre-insulated bimetal lugs are used to connect a LV insulated overhead lines to the transformer.

SC.2 SC.4

LOW VOLTAGE TIN-PLATED COPPER LUG (WITH INSPECT HOLE) SC(JGK) SERIES

  1. MANUFACTURED FROM PURE ELECTROLYTIC COPPER. Cu ≥99.9%
  2. COPPER LUGS & CABLE TERMINALS FROM 2.5 TO 630 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED .
  3. LEAD FREE ELECTRIC TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
  4. CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.
  5. INCORPORATE INSPECTION HOLE TO CHECK THE CORRECT CABLE POSITIONING

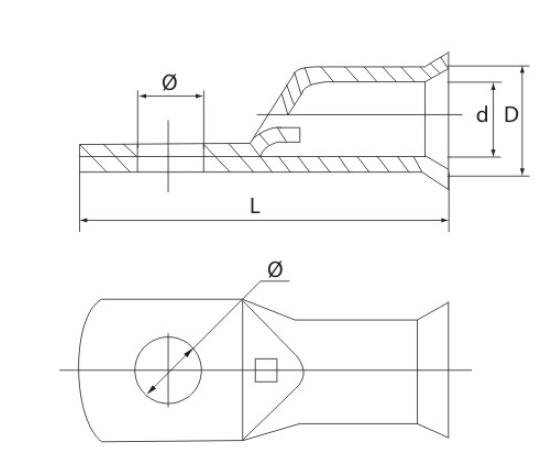

Item No.

Applicable Bolts

 Dimension(mm)

D

d

L1

L

SC(JGK)-1.5

Ø4 Ø5 Ø6

3.5

1.8

7.0

19.0

SC(JGK)-2.5

Ø4 Ø5 Ø6

4.0

2.5

7.0

19.0

SC(JGK)-4

Ø4 Ø5 Ø6

4.8

3.1

8.0

20.0

SC(JGK)-6

Ø5 Ø6 Ø8

5.5

3.8

9.0

24.0

SC(JGK)-10

Ø6 Ø8

6.7

5.0

9.0

25.0

SC(JGK)-16

Ø6 Ø8 Ø10

7.5

5.8

11.0

30.0

SC(JGK)-25

Ø6 Ø8 Ø10 Ø12

9.0

7.0

12.5

33.0

SC(JGK)-35

Ø6 Ø8 Ø10 Ø12

10.5

8.3

14.5

38.0

SC(JGK)-50

Ø8 Ø10 Ø12

12.5

9.9

17.0

45.0

SC(JGK)-70

Ø8 Ø10 Ø12

14.5

11.6

18.0

49.0

SC(JGK)-95

Ø8 Ø10 Ø12 Ø16

17.5

14.1

19.0

55.0

SC(JGK)-120

Ø12 Ø16

19.5

15.7

23.0

62.0

SC(JGK)-150

Ø12 Ø16

20.5

16.6

28.0

68.0

SC(JGK)-185

Ø12 Ø16

23.5

18.9

32.0

77.0

SC(JGK)-240

Ø12 Ø16

26.0

21.4

36.0

88.0

SC(JGK)-300

Ø12 Ø16

30.0

24.2

42.0

100.0

SC(JGK)-400

Ø12 Ø16

34.0

27.2

46.0

110.0

SC(JGK)-500

Ø16 Ø20

38.0

30.2

48.0

121.0

SC(JGK)-630

Ø16 Ø20

45.0

35.2

55.0

138.0

Yongjiu Electric Power fitting Co.,Ltd. is a primary domestic professional manufacturer of electric power fitting and cable accessory. Our main products are cable connector, line fitting, (Copper Aluminium and iron),cable accessory, plastic products, power tools, fuse(LV & HV),light arrester and insulator with approved quality complying with 1509001 /2000 .

Our company was founded in 1989.0ur company is located in LiuShi Town, Wenzhou, which is the center of electrical equipment in China. It is about 15 km from Wenzhou Airport and Railway Station.

Covering an area of 20,000 square meters, our company has more than 300 skilled staffs, including 38 senior & intermediate technical personnel and administrative personnel
Focusing attention on innovation, our company has successfully developed more than 200 series products. With internationally advanced machinery processing facilities, our company is capable of producing various electric power fitting and cable accessory to meet customers’special requirement.
Our products have been exported to more than 40 countries and they are sold well in those countries and regions.

We enjoy a good reputation among customers due to unique styles and consistently high quality, Adhering to the principle of “Since Service, Faithful Reputation and Top Priority of Customers”, we always try our best to provide excellent after-sales service.

全球搜详情_03(1)

FAQ

Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.
